SR20 (Bishop Canyon) Bike and Pedestrian Safety Project
Improving Pedestrian & Bicycle Safety
Project Overview
This project will close a non-motorized transportation route gap by constructing approximately 800 feet of sidewalk on the southern side of SR20 between Logan Street and Hancock Street. This segment of SR20 crosses a topographical feature known as “Bishop Canyon”. Project components to be considered during design include lane width reduction, raised crosswalk, RRFBs, crossing markings, illumination including free-standing light standards and luminaires mounted to existing JPUD poles, curb ramps, buffered bike lane, replace gravity sewer main, and sidewalks. The City has been selected to receive $1,234,000 in state funding from the Pedestrian & Bicycle Safety Program utilizing Climate Commitment Act (CCA) funds (see award letter and project summary under separate cover). It is anticipated that funding for the PE phase will be obligated in October 2025.

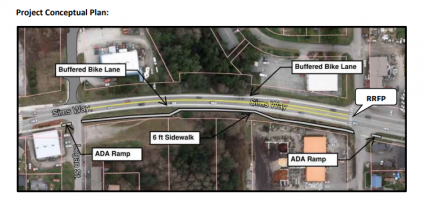

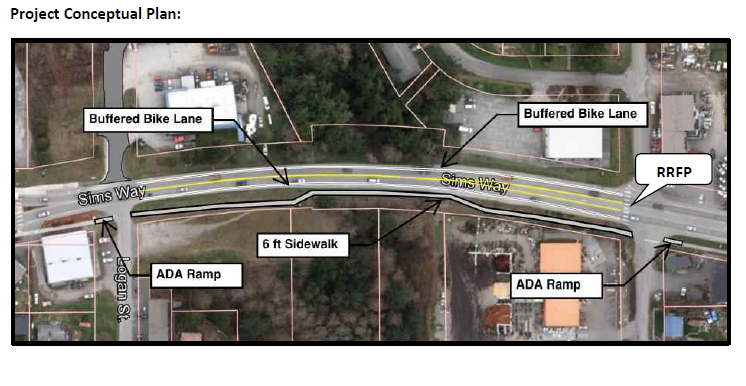

Project Area
This project will:
1) At the intersection of SR 20 and Logan St:
- Mark high-visibility crosswalk for west and south ends
- Construct four ADA curb ramps
2) At the intersection of SR 20 and Hancock St:
- Construct raised crosswalk with pedestrian signal or rectangular rapid flashing beacon for west end
- Mark high-visibility crosswalks for north and south ends
- Construct eight ADA curb ramps
- Bicycle crossing markings for west end
3) On SR 20 from the vicinity of Logan St to the Hancock St:
- Construct 6' sidewalk on the south side of the road (connecting to existing sidewalk at west end and Hancock at east end)
- Narrow travel lanes to 10 feet
- Develop buffered bike lanes
- Minimum 4.5 foot bike lane w/ 1.5 foot buffer on north side
- Min 5 foot bike lane w/1.5 foot buffer on south side
Install pedestrian/bicyclist segment illumination
Install pedestrian/bicyclist crossing illumination
Project Budget
|
Cost Estimate |
Amount |
Comments/source of estimate |
| Engineering Project Management and Grant Administration | $75,000 | |
|
Preliminary Engineering Design |
$145,000 |
|
| Final Engineering Design & Permitting | $145,000 | |
|
Construction |
$745,000 |
|
|
Project Contingency |
$224,000 |
|
| Total | $1,334,000 |
The SR20 (Bishop Canyon) Bike and Pedestrian Safety Project is supported with funding from Washington’s Climate Commitment Act. The CCA supports Washington’s climate action efforts by putting cap-andinvest dollars to work reducing climate pollution, creating jobs, and improving public health. Information about the CCA is available at www.climate.wa.gov.
Project Schedule
|
Proposals due |
October 15, 2025 at 5:00 pm |
| Consultant interviews (optional) | Week of October 27, 2025 |
| Consultant selection | November 3, 2025 |
| Brainstorm session (consultant, City staff) | November 12, 2025 |
| Begin Design | December 2025 |
| Community outreach/engagement | March 2026 |
| Environmental documents approved | June 2026 |
| Right of Way approved (if needed) | October 2026 |
| Final PS&E documents | December 2027 |
| Construction bid advertisement | January 2027 |
| Construction contract award date | March 2027 |
| Start construction | April 2027 |
| Construction complete | August 2027 |
All dates are approximate and subject to change, we will add more detail as it becomes available.
Project contact:
David Dinkuhn, P.E., City Engineer
